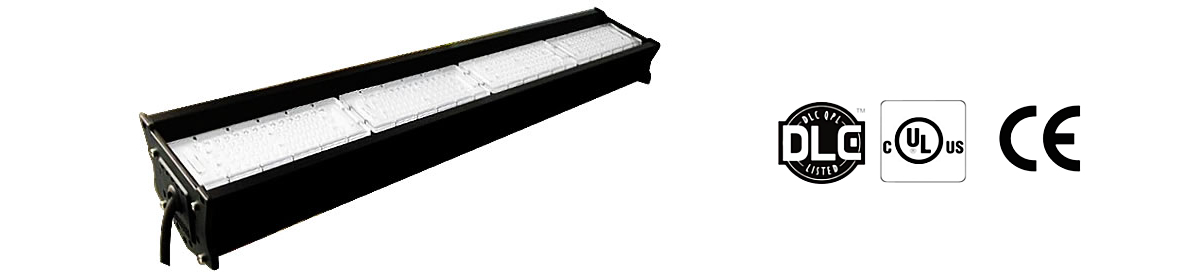

LM130-120W
LB-Im130-120W
LED Linear High Bay Light Parameters |
| Input Voltage | AC100V - 240V | Frequency Range | 50Hz - 60Hz |
| Total Harmonic Distortion | ≤12% | Power Factor | ﹥0.96 |
| Power Efficiency | ﹥90% | LED Working Voltage | DC42～ 54V |
| System Consumption | 120±5% | LED Quantity | 1 PCS |
| Led Luminous Efficiency | 100LM/W | Led Initial Flux | 15600lm |
| Illumination Uniformity | ﹥0.5 | Lamp's Efficiency | ﹥80% |
| Color Temperature | WW | 3000K ±10% | Color Rendering Index | Ra﹥70 |

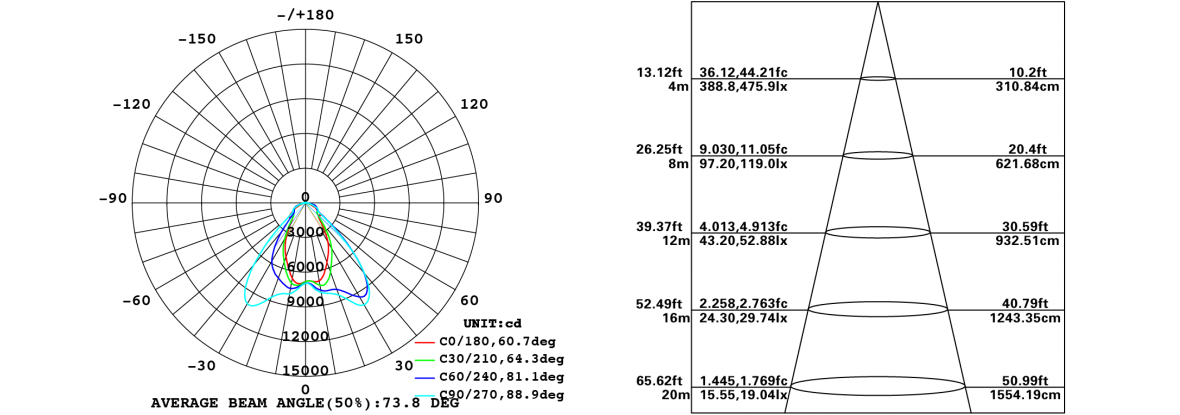

| PW | 4200K ±10% | Light Distribution | Symmetric /Circular light spot |
| CW | 6200K ±10% | Light Design | LED + Reflector |
| Junction Temperature | ≦40℃ | IP Grade | IP65 |
| LED Working Life-span | 50000H | Power line | 1.0mm2 cable |
| Brown | L Live | NW | 5.0kg |
| Connect wire | Blue | N Neutral | GW（2pcs） | 5.2kg |
| Yellow/Green | G Ground | 1pcs Packing Size | 775*180*130mm |
| Ambient Temperature | -450C～+600C | 2pcs Packing Size |
|
| Finish Color | Sliver, black | Certificate | CE,UL,DLC |
Main Advantages of linear led high bay light:
1) Modular design,Composed of different wattage.120W/150W/200W
2) 130LM/W with Nichia chips,Epistar chips
3) 60*90 / 120 degree Beam angle
4) 5-year warranty.IP65 waterproof
5) Sensor function and Emergency are all vailable
Trade terms:
1.Payment: T/T (Western Union or Paypal are welcomed).
2.Sample can be delivered within 3days.mass 10-35 days.
3.Shopping freight are quoted as your requestment.
4.Shipping port: Shenzhen, Mainland China.
5.Discounts are offered based on order quantities
Feature:
1. 100% lead-free & 100% mercury- free.
2. Over 50000 hours life span.
3. No UV and IR radiation
4、Adopt one integrated LED chip as light source which has independent intellectual property rights，the light source design is using special integrate multi-chips a module，use high bright imported led chips, with good heat dissipation , low light depreciation, pure light color, no double-shadow etc.
5、Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of light source and power.
6、The heat sink surface have conducted anodic oxidation anti-corrosive process., compact layout and beautiful，corrosion resistant、water proof and dust proof.
7、Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
